Introduction

This page provides a detailed overview of ForeFlight’s Takeoff & Landing Performance feature, including an explanation of the different UI sections within the Takeoff and Landing pages, an explanation of all possible “Calculation” outputs for both takeoff and landing, a number of common questions and answers related to the feature, and the full list of supported aircraft types. Watch our How-To video if you haven't already for a walkthrough of the feature and answers to some common questions.

Jump to Section

Takeoff & Landing Page Structure
Takeoff Output Labels
Landing Output Labels
Takeoff & Landing Performance FAQs
Supported Aircraft List

Watch the video

Takeoff & Landing Page Structure

The example screenshots below are from the takeoff performance page for a Pilatus PC-12; however, the landing performance page and all other aircraft types use the same overall structure, though the details may vary. Every blue value is user-adjustable.

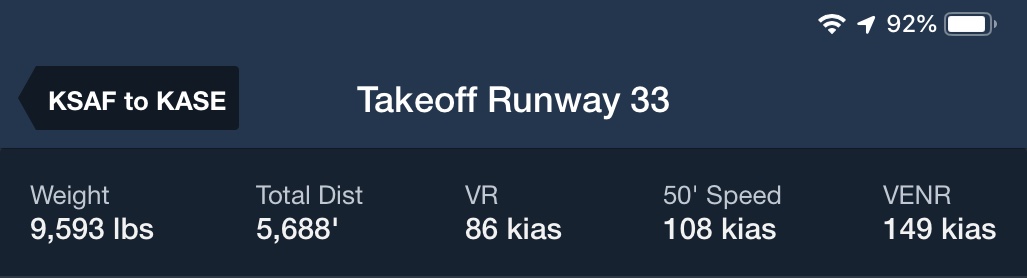

Header

Provides at-a-glance values for important weight, distance, and speed information that you can also find in the Calculations section.

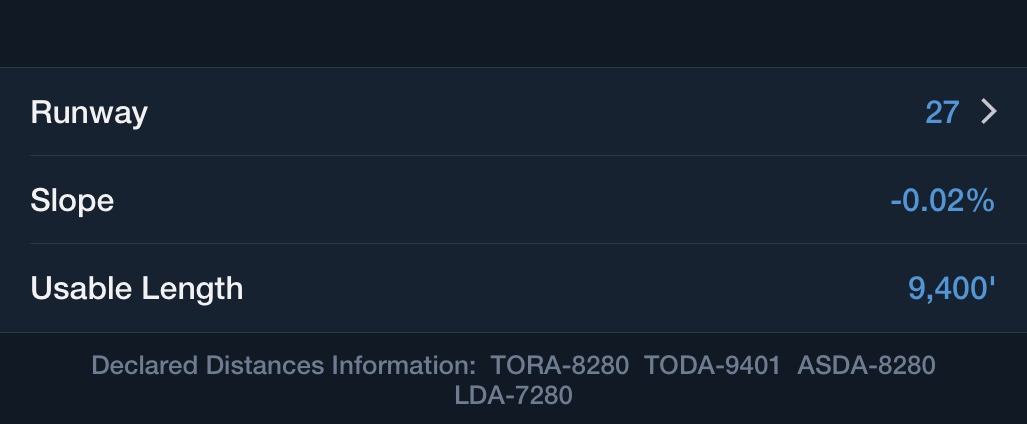

Runway

Select a runway for takeoff or landing and access runway-specific information such as slope (negative slope indicates the slope is downhill) and usable length. If the selected aircraft’s POH has alternate surface support, a surface type selector will appear here. The runway's Declared Distance information is available below so you can easily update the usable length value to match if required by your operation.

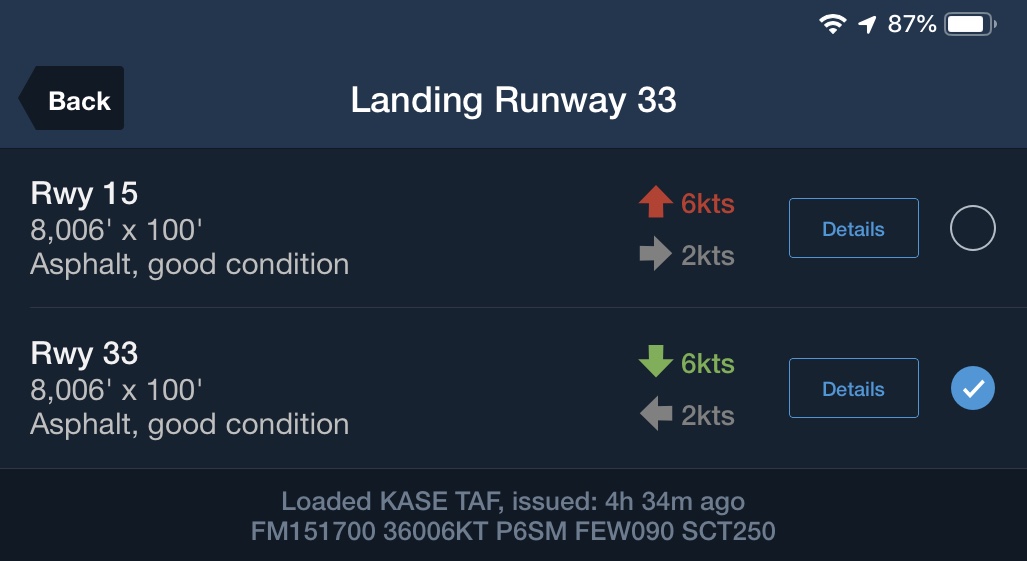

Runway List

Lists all available runways for the selected airport with information about each one. Known winds are broken into headwind/tailwind component and crosswind component for each runway. Tap Details to see more information about a runway.

NOTE: In general, aircraft POHs publish runway performance corrections for up to 10 knots of tailwind (some older POHs don’t publish any tailwind corrections). If the selected runway’s tailwind component exceeds the published tailwind limit, no performance results are displayed and ForeFlight provides an error message that the tailwind limit was exceeded.

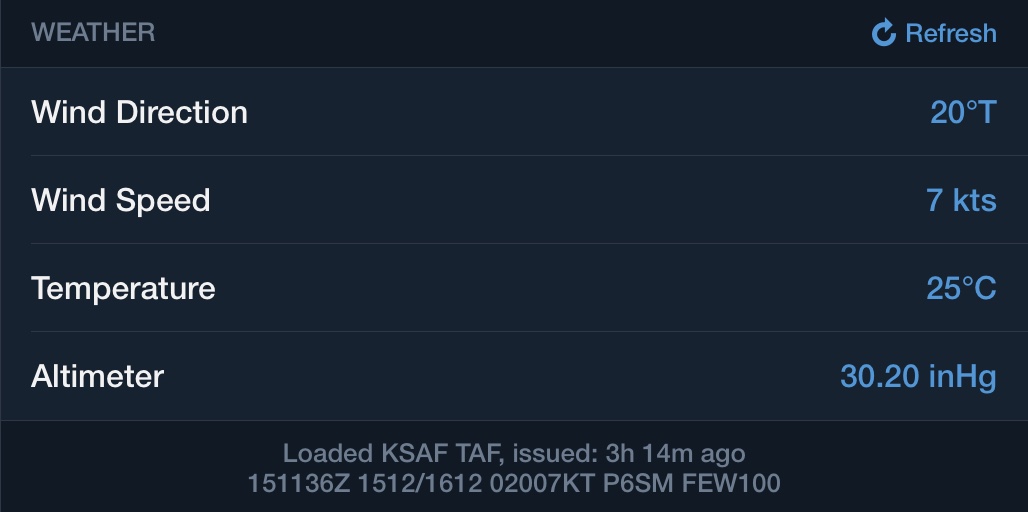

Weather

Automatically loads the airport’s METAR, TAF, or MOS forecast nearest to the estimated takeoff or landing time, or uses weather from a nearby airport if none is available for the selected airport. The original text of the METAR or forecast is displayed at the bottom of the section. Tap Refresh to load new information if available.
You can manually change the Wind Direction to use magnetic (M) direction for use with ATIS or tower wind reports.

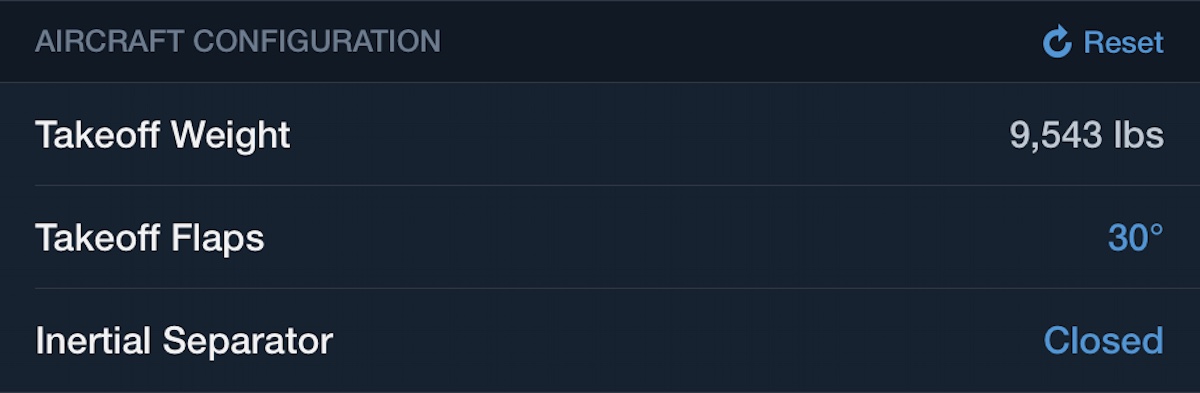

Aircraft Configuration

All pilot-adjustable inputs affecting runway performance as defined by the aircraft’s POH are here. Some aircraft provide no pilot-adjustable inputs, while others provide multiple configuration settings. Tap Reset to restore the settings to their default configuration.

NOTE: Some aircraft require specific configuration combinations under icing or other situations. ForeFlight will not display performance results for non-published configurations and will provide an error message explaining the issue.

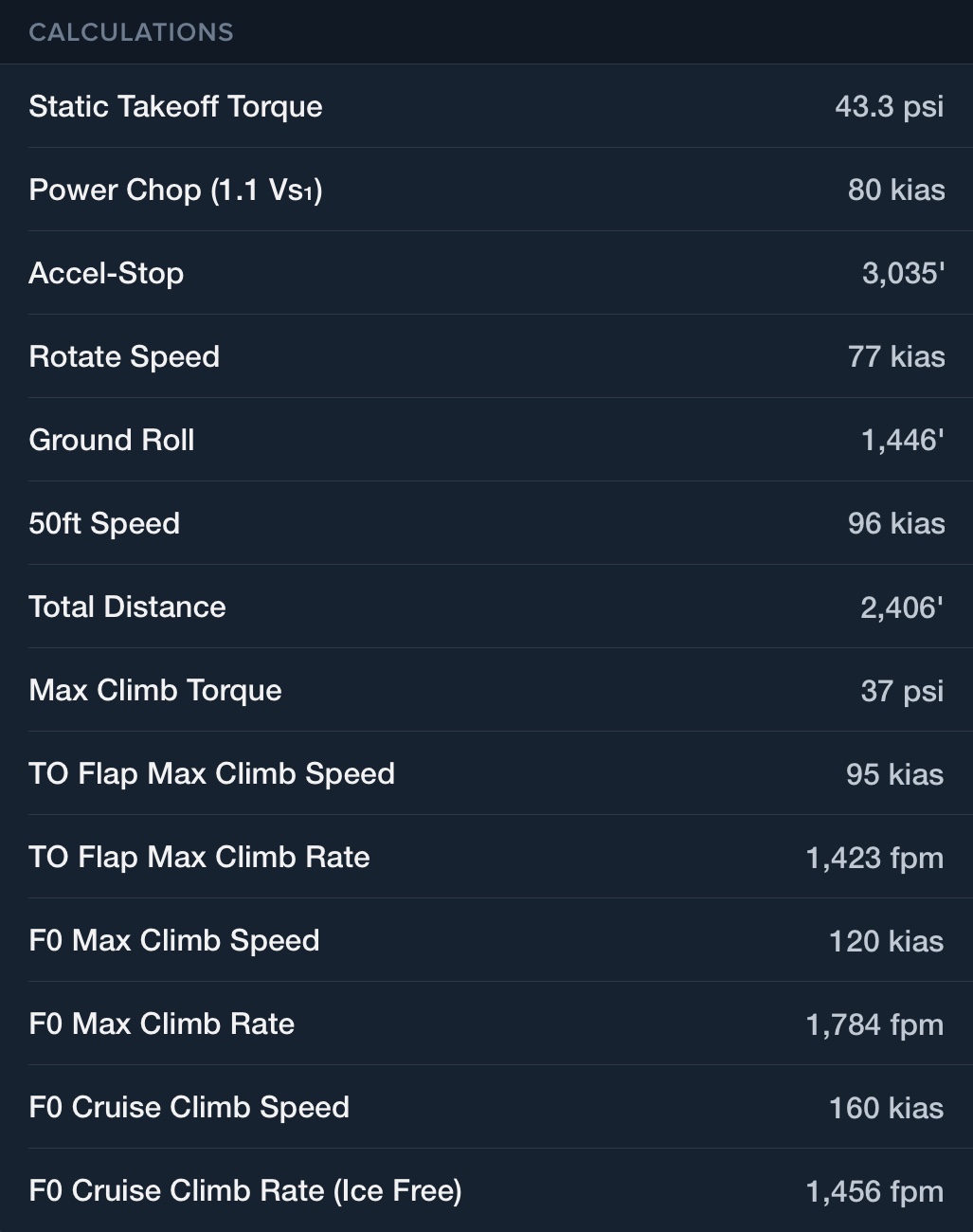

Calculations

Displays the results of ForeFlight’s runway performance calculation using the provided input conditions. The displayed results for a given aircraft are the same found in the aircraft’s POH, including the resulting performance parameter name. Different aircraft types will provide different sets of outputs.

NOTE: It is important to realize that ForeFlight does not perform physics-based performance calculations, but rather interpolates on the POH-provided performance data. For example, some POHs from the 1950’s and 60’s do not include the effect of air temperature on performance, and so neither will ForeFlight when planning with such an aircraft. You should think of Takeoff & Landing Performance as a faster, integrated alternative to determining runway performance by hand using your POH; given the same inputs, the outputs will be exactly the same.

Takeoff Output Labels

The following table lists generic takeoff output labels used for most aircraft, though not all aircraft provide every output label and some aircraft have specific output labels that apply only to that aircraft, which are not listed here. Consult your aircraft’s POH for further detail on the specific aircraft configuration used for these outputs.

Rotate Speed Target takeoff speed upon which to initiate takeoff rotation
Liftoff Speed Approximate speed when main gear leaves the runway; faster than rotate speed, but slower than 50 ft speed
Ground Roll Takeoff distance from brake release point until main gear lifts off the runway.
50ft Speed Initial climb speed reached at end of total takeoff distance and at the obstacle height of 50 ft AGL with gear down and takeoff flaps.
Total Distance Takeoff distance from brake release point through reaching 50 ft obstacle height point above ground level (AGL). Consists of ground roll distance and air segment for initial climb, all at takeoff flap setting and gear down (if retractable).
Accel-Stop Distance Distance from brake release point through acceleration to a reject speed and subsequent deceleration to a full stop; aircraft never leaves the runway (this distance is typically only found with twin engine aircraft)
Climb Speed Target speed for the initial climb after reaching the 50 ft AGL takeoff point, typically gear up, if retract (see POH for flap setting used)
Climb Rate Instantaneous rate of climb in ft/min for the initial climb after reaching the 50 ft AGL takeoff point typically gear up, if retract (see POH for flap setting used)
Climb Gradient Instantaneous climb gradient (rise/run) for the initial climb after reaching the 50 ft AGL takeoff point typically gear up, if retract (see POH for flap setting used)
Takeoff Climb Speed Target speed for the initial climb after reaching the 50 ft AGL takeoff point in the POH-defined takeoff flap and gear configuration
Takeoff Climb Rate Instantaneous rate of climb in ft/min for the initial climb after reaching the 50 ft AGL takeoff point in the POH-defined takeoff flap and gear configuration
Takeoff Climb Gradient Instantaneous climb gradient (rise/run) for the initial climb after reaching the 50 ft AGL takeoff point in the POH-defined takeoff flap and gear configuration
Cruise Climb Speed Target enroute climb speed, typically flaps up and gear up, if retract
Cruise Climb Rate Enroute climb rate, typically flaps up and gear up, if retract
Cruise Climb Gradient Enroute climb gradient, typically flaps up and gear up, if retract
OEI Climb Speed Target climb speed when one engine inoperative (OEI) on a twin engine aircraft
OEI Climb Rate Climb rate when one engine inoperative (OEI) on a twin engine aircraft



Landing Output Labels

The following table lists generic landing output labels used for most aircraft, though not all aircraft provide every output label and some aircraft have specific output labels that apply only to that aircraft, which are not listed here. Consult your aircraft’s POH for further detail on the specific aircraft configuration used for these outputs.

50ft Speed (or Approach Speed) Target threshold crossing speed for landing and at 50 ft AGL (obstacle height point). Typically referred to as the reference speed (VREF), some manuals call it the approach speed (VAPP).
Total Distance Landing distance from 50 ft AGL obstacle height point (over approach end runway threshold) until full stop is reached. Consists of air portion with flare, touchdown and stopping portion.
Ground Roll Landing distance from touchdown point on the runway until full stop is reached.
Go-Around/Balked Landing Climb Speed Target go-around speed, typically in landing flap/gear configuration.
Go-Around/Balked Landing Climb Rate Go-around climb rate in ft/min. Consult POH for flap and gear configuration.
Go-Around/Balked Landing Climb Gradient Go-around climb gradient (rise/run). Consult POH for flap and gear configuration.



Takeoff & Landing Performance FAQs



Q: I’m not seeing the Takeoff and Landing button on Flights page. Why?

A: Runway performance calculation requires a subscription to the Performance Plus tier, as well as use of an aircraft for which a runway performance model exists. View the list of supported aircraft models at the bottom of the page to see if we support your aircraft.

Q: How do I know if my aircraft is supported for runway performance calculations?

A: View the list of supported aircraft models at the bottom of the page, or search our Performance Directory for your aircraft. Any aircraft with a blue line stating “Supports Takeoff & Landing Performance”, then your aircraft has been modeled and will provide takeoff/landing performance calculations.

Q: Why can’t I change my takeoff/landing weight on the runway performance page?

A: The takeoff/landing weight is directly tied to the takeoff/landing weight on Flights page; if the presented takeoff/landing weight on the runway performance page is not what you desire to use for calculations, you will need to modify your payload and/or fuel load on Flights first, to achieve the desired takeoff/landing weight for runway performance calculations.

Q: I’m changing my takeoff/landing weight, but the distance results do not change. Why is that?

A: Consult your POH. It is likely that takeoff and/or landing performance data are only published for a single takeoff or landing weight, specifically that maximum takeoff or landing weight for your aircraft. If that is the case, you will always see results for the maximum takeoff or landing weight, regardless of your actual takeoff/landing weight.

Q: Runway slope does not seem to affect distance results.

A: Consult your POH. Many aircraft do not publish runway slope effect on takeoff and landing performance. If that is the case, runway slope changes will not be reflected in the calculated distance results.

Q: Why am I seeing “runway slope of 3% exceeds published limit of 2%” message?

A: Most aircraft POH do not include runway slope effects on takeoff/landing distance. For those POH which do include this effect, the published slope range is a hard limit. Typically slope effects of +2% uphill through -2% downhill are published. Any runway slope outside of that range is unknown and cannot be used for calculation. Consult your POH for more information around the slope limits for your aircraft.

Q: Why am I seeing an “Outside air temperature out of range”message?

A: Consult your POH. The provided input Temperature likely exceeds what is published for that pressure altitude.

Q: Why am I seeing a “Tailwind component out of range” message?

A: Most aircraft are limited to a maximum of 10 knot tailwind component. Some aircraft have a 5 knot limit. When the tailwind component exceeds this limit, you will see this message because takeoff/landing with this tailwind component is not allowed. Consult your POH for full details on the limits of your aircraft.

Q: I’m not seeing any calculation result differences when changing from 31 knot to 36 knot headwind. Why?

A: Most aircraft manufacturers publish wind effect on takeoff/landing performance up to 30 knots headwind component (some publish to 15 knots). For winds greater than the published maximum headwind component, the maximum published headwind component is used, as a greater headwind component results in an even shorter, and therefore more conservative, takeoff/landing distance.

Q: Changing wind has no effect on my takeoff/landing distances.

A: Consult your POH. It is likely that the takeoff/landing performance data does not include a wind effect at all.

Q: Why can’t I change the runway surface to grass for my aircraft?

A: Consult your POH. Some (but few) aircraft POHs publish non-paved runway corrections. If your aircraft’s POH includes them, you will see a Runway Surface selection in the Runway group on the takeoff/landing page.

Q: If I select a grass runway in the runway picker, and my aircraft’s POH support grass runway corrections, why isn’t the Runway Surface selector automatically set to Grass Runway?

A: Automatic selection of runway surface type based on the runway selected is currently not supported. Grass runways can be tricky, as some aircraft manufacturers simply use “Grass Runway” while others use “Dry Grass” and “Wet Grass” and yet others have 3-4 different grass depths. For this reason it’s up to the pilot to manually make the best selection for their runway condition.

Q: Is density altitude considered in these performance calculations?

A: Yes. Density altitude is pressure altitude corrected for temperature effects. Most POH performance data operate with pressure altitude and outside air temperature inputs, which together, factor into a density altitude.

Q: Why can’t I directly change my altitude input on the takeoff/landing page?

A: Because performance calculations are based on pressure altitude, pressure altitude is automatically calculated from the aircraft’s elevation and the METAR or manually provided altimeter setting.

Q: I’m changing cold temperature (or light weight) inputs, but my performance results are not changing. Why?

A: Consult your POH for the low-end temperature and weight limits. For inputs less than those limits, performance results are calculated at the published low weight (or temperature) limit. The results provided are more conservative (longer distance, lower rate-of-climb, etc) than if calculated with your actual inputs.

Q: Why am I not seeing any results when I provide a set of inputs?

A: Consult your POH, specifically checking for the allowable aircraft configuration. Some aircraft require a specific flap setting when other conditions (such as icing) exist. If a non-allowed flap setting is chosen, no results are displayed, as this flight condition is not allowed, per POH.

Q: I picked my aircraft, it supports Runway Performance, I tapped on the Takeoff button and see a list of serial number ranges for my aircraft - what do I do? Which one do I pick?

A: Consult your POH and your aircraft registration information. Some aircraft have differing runway performance data for multiple serial number ranges within the total production run. In other words, as the aircraft production continued over many years, improvements were made, which affect runway performance. Find the serial number for your aircraft and pick the option within which your serial number falls. If your range is not provided, please contact us at team@foreflight.com to provide details on your aircraft (POH, serial number) so we can research your specific case.

Q: Are runway performance data synced between FF Mobile and FF Web?

A: Yes

Q: When connected to ADS-B, or any other in-flight weather source, will METAR data be used to prefill runway performance page weather for an airport with METAR coverage?

A: Yes.

List of Supported Aircraft

(Short Field) indicates that ForeFlight only provides distance results for the Short Field takeoff or landing procedure, not the Normal procedure. See this article for more information.

Beechcraft Baron 55 B55 B55A
Beechcraft Baron 55 B55 B55A
Beechcraft Baron 58 58A
Beechcraft Baron 58 58A
Beechcraft Baron 58 58A
Beechcraft Baron 58P
Beechcraft Baron 58P
Beechcraft Baron 58P
Beechcraft Baron 58P
Beechcraft Baron 95-55 95-55A
Beechcraft Baron 95-C55
Beechcraft Baron B55 B55A
Beechcraft Baron D55
Beechcraft Baron E55
Beechcraft Baron E55
Beechcraft Baron E55
Beechcraft Baron G58
Beechcraft Bonanza 35
Beechcraft Bonanza 36 A36
Beechcraft Bonanza A35
Beechcraft Bonanza A36
Beechcraft Bonanza A36
Beechcraft Bonanza A36 TAT
Beechcraft Bonanza A36TC
Beechcraft Bonanza B35
Beechcraft Bonanza B36TC
Beechcraft Bonanza B36TC
Beechcraft Bonanza C35
Beechcraft Bonanza D35
Beechcraft Bonanza E33
Beechcraft Bonanza E33A
Beechcraft Bonanza E35
Beechcraft Bonanza E35
Beechcraft Bonanza F33
Beechcraft Bonanza F33A
Beechcraft Bonanza F33A
Beechcraft Bonanza F35
Beechcraft Bonanza F35
Beechcraft Bonanza G35
Beechcraft Bonanza G36
Beechcraft Bonanza H35
Beechcraft Bonanza J35
Beechcraft Bonanza K35
Beechcraft Bonanza M35
Beechcraft Bonanza N35
Beechcraft Bonanza P35
Beechcraft Bonanza S35
Beechcraft Bonanza V35
Beechcraft Bonanza V35A
Beechcraft Bonanza V35A-TC
Beechcraft Bonanza V35B
Beechcraft Bonanza V35B
Beechcraft Bonanza V35B-TC
Beechcraft Debonair 35 C33A
Beechcraft Debonair 35-33
Beechcraft Debonair 35-A33
Beechcraft Debonair 35-B33
Beechcraft Debonair 35-C33
Beechcraft Sundowner C23
Beechcraft Turbo Baron 56TC
Beechcraft Turbo Baron A56TC
Bellanca Super Viking 300A (Short Field)
Britten Norman Islander BN2B
Cessna 150D (Short Field)
Cessna 150F Commuter (Short Field)
Cessna 150G (Short Field)
Cessna 150H (Short Field)
Cessna 150J (Short Field)
Cessna 150K (Short Field)
Cessna 150L (Short Field)
Cessna 150M Commuter (Short Field)
Cessna 152 (Short Field)
Cessna 162 Skycatcher (Short Field)
Cessna 172 Skyhawk (Short Field)
Cessna 172 Skyhawk Air Plains STC (Short Field)
Cessna 172B Skyhawk (Short Field)
Cessna 172C Skyhawk (Short Field)
Cessna 172E Skyhawk (Short Field)
Cessna 172F Skyhawk (Short Field)
Cessna 172G Skyhawk (Short Field)
Cessna 172H Skyhawk (Short Field)
Cessna 172I Skyhawk (Short Field)
Cessna 172K Skyhawk (Short Field)
Cessna 172L Skyhawk (Short Field)
Cessna 172M Skyhawk (Short Field)
Cessna 172N Skyhawk (Short Field)
Cessna 172P Skyhawk (Short Field)
Cessna 172R Skyhawk (Short Field)
Cessna 172RG Cutlass RG (Short Field)
Cessna 172S Skyhawk (Short Field)
Cessna 172S Skyhawk Diesel (Short Field)
Cessna 172S Skyhawk Diesel (Short Field)
Cessna 182G Skylane (Short Field)
Cessna 182H Skylane (Short Field)
Cessna 182J Skylane (Short Field)
Cessna 182K Skylane (Short Field)
Cessna 182L Skylane (Short Field)
Cessna 182P Skylane (Short Field)
Cessna 182Q Skylane (Short Field)
Cessna 182R Skylane (Short Field)
Cessna 182S Skylane (Short Field)
Cessna 182T Skylane (Short Field)
Cessna 350 Corvalis (Short Field)
Cessna 400 Corvalis TT (Short Field)
Cessna 414A RAM VII
Cessna C177B Cardinal (Short Field)
Cessna C208B Grand Caravan EX Cargo Pod
Cessna C208B Grand Caravan EX No Cargo Pod
Cessna T303 Crusader (Short Field)
Cirrus Design SR20 Avidyne
Cirrus Design SR20G2
Cirrus Design SR20G3
Cirrus Design SR20G6
Cirrus Design SR22G1
Cirrus Design SR22G2
Cirrus Design SR22G2TAT
Cirrus Design SR22G3
Cirrus Design SR22G3TAT
Cirrus Design SR22G5
Cirrus Design SR22G6
Cirrus Design SR22T
Cirrus Design SR22TG3
Cirrus Design SR22TG6
Daher Socata TBM700A
Daher Socata TBM700AB
Daher Socata TBM700C1
Daher Socata TBM700C2
Daher Socata TBM850
Daher Socata TBM850 G1000
Daher Socata TBM900
Daher Socata TBM910
Daher Socata TBM930
Diamond DA20-C1 Evolution
Diamond DA40 XLS
Diamond DA40-180 DiamondStar
Diamond DA40-D
Diamond DA40-D Prop2
Diamond DA40-F
Diamond DA40-NG
Diamond DA42 Twin Star A
Diamond DA42 Twin Star GFC700
Diamond DA42 Twin Star GFC700
Diamond DA42 Twin Star TDI
Diamond DA42 Twin Star TDI
Diamond DA42-L360
Diamond DA42-NG
Diamond DA42-NG
Diamond DA42-VI
Diamond DA62
Grumman American AA-5A Cheetah
Grumman American AA-5B Tiger
Mooney M20E Super 21
Mooney M20E Super 21
Mooney M20F Executive
Mooney M20J 201
Mooney M20K 231
Mooney M20K 252 TSE
Mooney M20K Encore
Mooney M20M Bravo
Mooney M20R Ovation 2 GX
Mooney M20TN Acclaim Type S
Mooney M20TN Acclaim Type S 310 HP
Mooney M20U Ovation Ultra
Mooney Ranger M20C
Pilatus PC-12/45
Pilatus PC-12/47
Pilatus PC-12/47E 4 Bladed
Pilatus PC-12/47E 5 Bladed
Pilatus U-28A
Piper Archer III PA-28-181
Piper Arrow II PA-28R-200
Piper Arrow IV PA-28RT-201
Piper Arrow PA-28R-201
Piper Cherokee 180 C PA-28-180
Piper Cherokee 180 D PA-28-180
Piper Cherokee 180 E PA-28-180
Piper Cherokee 235B PA-28-235
Piper Cherokee Archer II PA-28-181
Piper Cherokee Lance PA-32R-300
Piper Cherokee Arrow PA-28R-180
Piper Cherokee Cruiser PA-28-140
Piper Cherokee Warrior PA-28-151
Piper Comanche 250 PA-24-250 (Short Field)
Piper Comanche 260B PA-24-260B
Piper Dakota PA-28-236
Piper M600 PA-46-600TP
Piper Malibu Meridian M500 PA46-500TP
Piper Malibu Mirage PA-46-350P
Piper Malibu PA-46-310P
Piper Navajo Chieftain PA-31-350
Piper Saratoga II HP PA-32R-301
Piper Turbo Arrow III PA-28R-201T
Piper Turbo Lance III PA-32RT-300T
Piper Warrior II PA-28-161
Socata TB-20
Tiger Aircraft Tiger AG-5B
